The Aluminum Safety Clamp (EN 14420-3 / DIN 2817) is a forged alloy clamp designed to provide uniform clamping force and mechanical support for hose-to-fitting assemblies. It provides corrosion resistance and lightweight performance for hose assemblies used in chemical, food, and general fluid transfer applications.
Technical Specifications
|
Nominal Size (DN) |
Hose I.D. (mm) |
Hose O.D. Range (mm) |
Working Pressure (Bar) |
Bolt Size |
|
DN25 (1") |
25 |
36 - 39 |
25 |
M6 x 20 |
|
DN32 (1-1/4") |
32 |
43 - 46 |
25 |
M6 x 25 |
|
DN40 (1-1/2") |
40 |
50 - 53 |
25 |
M6 x 25 |
|
DN50 (2") |
50 |
63 - 67 |
25 |
M8 x 30 |
|
DN65 (2-1/2") |
65 |
78 - 82 |
25 |
M8 x 35 |
|
DN80 (3") |
80 |
93 - 97 |
25 |
M10 x 40 |
|
DN100 (4") |
100 |
118 - 122 |
25 |
M10 x 50 |
Key Advantages
Manufactured by high-pressure forging from EN AW-6082 T6 alloy, providing consistent strength and reduced internal defects.
CNC-machined with ±0.05 mm dimensional tolerance to ensure consistent clamping performance at working pressures up to 25 bar.
Features a four-bolt split-collar design with internal ribs to improve hose retention and prevent fitting separation under pressure.
Customization & OEM Capabilities
OEM options are available for different market and application requirements:
Surface Finishing
Anodizing (clear/black), Shot Blasting, Acid Washing, or Electro-polishing.
Traceability & Marking
Laser marking options include heat numbers, part numbers, size codes, and customer logos for product identification.
Coupling Compatibility
Fully compatible with standard EN 14420-5 tank truck couplings, Camlock connectors, and Guillemin fittings.
Manufacturing Capabilities
Production Facility: Equipped with heavy-duty forging presses, precision multi-axis CNC machines, and controlled surface-treatment lines.
Material Integrity: Utilizing prime-grade EN AW-6082 aluminum billets subjected to controlled T6 heat treatment to guarantee uniform material hardness and mechanical reliability.
Scalable Production Line: Optimized capacity featuring high-volume mold tooling and flexible batch scheduling for standard sizes, supported by localized raw material reserves to short lead times, minimize supply chain disruption, and ensure consistent.
Quality Control
Each batch undergoes quality inspection before shipment:
Spectrometric Material Verification: Every lot of aluminum raw material is verified using optical emission spectrometry. Material Test Reports (MTR) according to EN 10204 3.1 are provided upon request.
Dimensional Inspection: Critical mating dimensions, bolt hole alignments, and shell diameters are verified using calibrated go/no-go gauges and Coordinate Measuring Machines (CMM).
Hydrostatic Pressure Testing: Production samples are tested at 1.5 times the working pressure (37.5 bar) to verify pressure resistance.

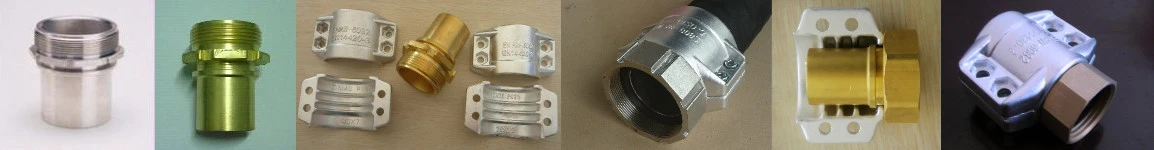

Compatible Connectors
