Camlock Coupling

Professional Camlock Coupling Manufacturer & Global Supplier

Camlock Couplings, also known as Cam and Groove Couplings, provide a fast and convenient method of connecting and disconnecting hoses, pipes, tanks, pumps, and fluid-transfer equipment.

Fuyikang is a professional manufacturer and global supplier of Camlock Couplings for industrial fluid transfer, agricultural irrigation, chemical handling, food-processing, petroleum, and general hose connection applications.

Camlock Coupling Product Range

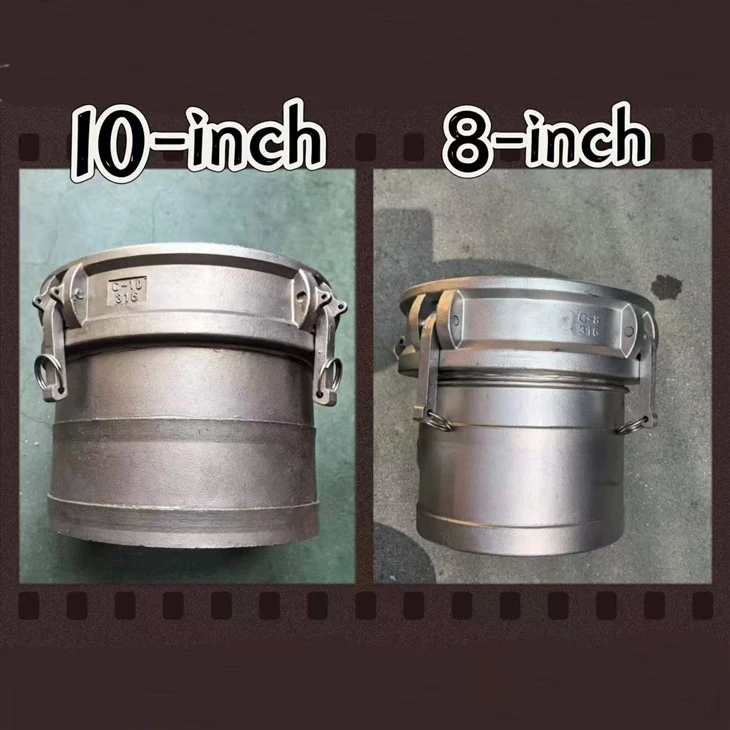

SS316 Camlock Coupling:SS316 Camlock Couplings are manufactured for demanding applications where mechanical strength, corrosion protection, hygiene, temperature stability, and long service life are important.SS316 contains molybdenum, helping provide improved performance in chloride-containing, marine, humid, washdown, and selected chemical environments compared with commonly used stainless steel grades.

Aluminum Camlock Coupling:Aluminum Camlock Couplings provide a practical balance of strength, low weight, easy handling, corrosion performance, and purchasing cost.They are widely used in agricultural irrigation, construction, water transfer, petroleum delivery, tanker operations, industrial maintenance, pump systems, and general liquid-handling applications.

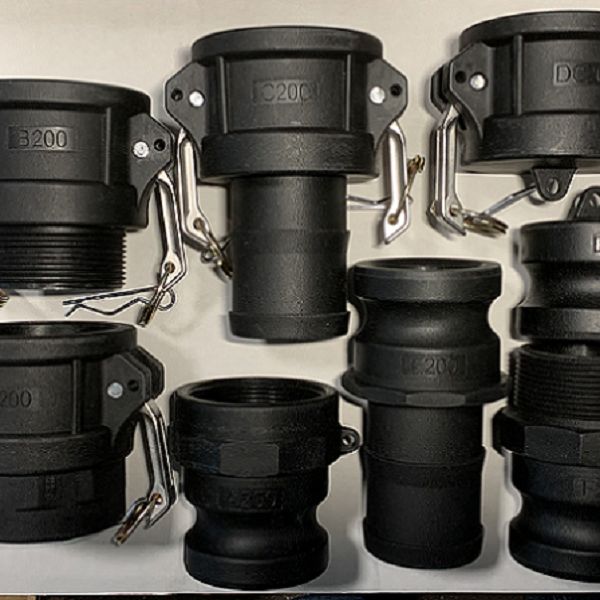

PP Camlock Coupling:PP Camlock Couplings are manufactured from polypropylene for lightweight, non-metallic, corrosion-sensitive, and selected chemical-transfer applications.They are widely used in agricultural spraying, water treatment, fertilizer transfer, chemical handling, irrigation, and other applications where low weight and resistance to metallic corrosion are important.

General Camlock Coupling Specifications

Item	Available Options
Product Name	Camlock Coupling / Cam and Groove Coupling
Materials	SS316, Aluminum, PP
Types	A, B, C, D, E, F, Dust Cap, Dust Plug
Size Range	Standard and customized sizes
Thread Options	BSP, BSPT, NPT or customized
Hose Connection	Hose shank
Sealing Method	Internal gasket
Gasket Options	NBR, EPDM, FKM, PTFE, Silicone or customized
Cam Arm Material	Stainless steel or project-specific material
Pin and Ring Material	Stainless steel or customized
Surface Treatment	Natural, polished, passivated or customized
Marking	Material, size, logo, batch or part number

SS316, Aluminum or PP: Which Camlock Material Should You Choose?

Material	Main Advantages	Typical Applications	Selection Considerations
SS316	High strength, excellent corrosion protection, long service life	Chemical, food, marine, industrial processing	Higher weight and cost than aluminum or PP
Aluminum	Lightweight, practical strength, cost-effective	Water, irrigation, fuel, construction and tanker systems	Chemical and galvanic compatibility must be checked
PP	Lightweight, non-metallic, no metallic rust	Agriculture, water treatment and selected chemicals	Lower mechanical and temperature capability than metal

Key Features of Fuyikang Camlock Couplings

Fast Connection and Disconnection:Camlock Couplings allow operators to connect or disconnect compatible hose and equipment lines without repeatedly tightening threaded unions.

No Special Connection Tool Required:Standard couplings are operated using the two cam arms, helping simplify equipment maintenance and hose replacement.

Wide Material Selection:SS316, aluminum, and PP versions support different industrial, agricultural, chemical, water-handling, and commercial applications.

Secure Cam-and-Groove Engagement:The cam arms engage with the groove around the male adapter and pull the adapter against the internal gasket.

Replaceable Gasket:The gasket can normally be inspected and replaced as part of routine maintenance.

Multiple End Configurations:Threaded, hose-tail, cap, and plug configurations allow Camlock Couplings to connect hoses, pumps, tanks, valves, pipes, and processing equipment.

Multiple Size Options:Common nominal sizes and project-specific dimensions can be supplied according to technical feasibility and purchasing volume.

Typical Applications

Agricultural Irrigation:Camlock Couplings are used to connect irrigation hoses, pumps, fertilizer tanks, sprayers, water-transfer equipment, and field distribution systems.Aluminum and PP versions are commonly considered because they are lightweight and convenient for frequent connection.

Chemical Processing:SS316 and PP Camlock Couplings can be selected for compatible chemical media according to concentration, temperature, pressure, and material compatibility.

Water Treatment:Camlock Couplings are used on tanks, pumps, filters, dosing equipment, temporary bypass lines, and maintenance hoses.

Construction and Dewatering:They provide convenient connections for pumps, discharge hoses, drainage systems, concrete-curing lines, temporary water supply, and site cleaning.

Tanker Loading and Unloading:Camlock Couplings support fast connection between hoses, storage tanks, transport equipment, and transfer pumps.

Petroleum and Fuel Transfer:Suitable coupling and gasket materials can be selected for fuel, oil, lubricant, and petroleum-transfer applications.The entire assembly must be grounded, installed, and operated according to applicable safety requirements.

Food and Beverage Processing:SS316 Camlock Couplings can be considered for selected food and beverage applications where corrosion protection and cleanability are important.Material documentation, surface finish, gasket compliance, and hygienic requirements must be confirmed for each project.

Marine and Offshore Equipment:SS316 products can be considered for fluid-transfer systems exposed to humid, salt-containing, dockside, shipyard, or offshore environments.

Mining and Quarry Operations:Metal Camlock Couplings can be used for compatible water, utility, washdown, fuel, and dewatering hose assemblies.

Industrial Manufacturing:Camlock Couplings support utility connections, process fluid lines, cleaning equipment, temporary transfer lines, tanks, pumps, and machine maintenance.

Recommended Camlock Coupling Installation Procedure

Confirm that both coupling halves have the same nominal Camlock size.

Verify the coupling materials and gasket compatibility.

Inspect the male adapter, female coupler, cam arms, pins, rings, and gasket.

Remove dirt, debris, old sealing material, or foreign particles.

Open both cam arms completely.

Insert the male adapter fully into the female coupler.

Close both cam arms evenly.

Confirm that both arms are fully engaged.

Check that the adapter is seated evenly against the gasket.

Install safety clips or locking devices where required.

Perform a controlled leakage test before full operation.

Inspect the connection after initial pressurization.

Camlock Coupling Manufacturing Process

Every Fuyikang Camlock Coupling is produced through controlled manufacturing procedures according to product material and structural requirements.

Raw Material Verification:Metal and plastic raw materials are checked according to the selected grade, dimensions, surface condition, and production requirements.

Precision Casting or Molding:SS316 and aluminum coupling bodies can be produced using appropriate casting processes.PP coupling bodies are produced using controlled molding processes according to product design and material requirements.

CNC Machining:Critical coupling features are machined to achieve the required dimensions and connection geometry.Machined areas may include:

Adapter diameter
Cam groove
Gasket seat
Threads
Hose shank
Coupler cavity
Pin holes
Sealing surfaces

Deburring and Surface Finishing:Sharp edges, casting burrs, machining burrs, and surface defects are removed.Depending on material and requirements, finishing may include:

Cleaning
Polishing
Passivation
Shot blasting
Surface smoothing
Customer-specific treatment

Thread Inspection:Thread diameter, pitch, taper, depth, and engagement are checked according to the required thread standard.

Component Assembly:Cam arms, pins, rings, gaskets, clips, and other components are installed and checked for correct movement and fit.

Dimensional Inspection:Critical dimensions are inspected using appropriate gauges and measuring equipment.

Functional Verification:The coupling is checked for:

Adapter insertion
Coupler engagement
Gasket seating
Thread condition
Assembly completeness
Visual quality

Packaging Inspection:Product type, size, material, gasket, marking, quantity, labels, and packaging are confirmed before shipment.

Factory strength

Suzhou Fuyikang Metal Industrial Co., Ltd. is a manufacturing factory specializing in the precision casting and machining of stainless steel products. Our primary casting method is full-silica sol investment casting. The company is located in Suzhou, China. Besides advanced casting equipment, machining centers and CNC lathes, we also have a team of experienced senior technical experts who possess rich production experience and superb professional skills.

Packaging and Global Shipping

Packaging is selected according to coupling material, size, weight, surface, quantity, and transportation method.

Available packaging options include:

PE bags
Protective sleeves
Individual boxes
Inner cartons
Bulk cartons
Reinforced export cartons
Wooden cases
Export pallets

Shipping options can include:

Sea freight
Air freight
Railway transport
International express
Multimodal logistics

Certifications & Quality Assurance

Available quality documents include:

Certificate of Conformity (COC)
Material Certificate
Certificate of Origin (CO)
Third-Party Inspection Support (SGS, BV, TÜV, or customer-designated inspection agencies)

FAQ

Q: What is a Camlock Coupling?

A:A Camlock Coupling is a quick hose and pipe connection consisting of a male adapter and a female coupler with cam arms. Closing the cam arms pulls the adapter against the gasket inside the coupler.

Q: Is a Camlock Coupling the same as a Cam and Groove Coupling?

A:Yes. Camlock Coupling, Cam and Groove Coupling, Cam Lever Coupling, and Cam Coupling are commonly used names for the same general connection system.

Q: Which Camlock materials does Fuyikang offer?

A:Our main product range includes SS316 Camlock Couplings, Aluminum Camlock Couplings, and PP Camlock Couplings.

Q: How do I select between SS316, aluminum, and PP?

A:Choose according to the transferred medium, corrosion environment, required mechanical strength, operating pressure, temperature, equipment weight, service life, and purchasing budget.

Q: Can PP Camlock Couplings replace metal couplings?

A:Not in every application. PP has lower mechanical and temperature capability than many metal couplings. The complete operating conditions must be evaluated.

Q: Are Camlock Couplings suitable for high-pressure systems?

A:Camlock Couplings are generally used in low- to medium-pressure fluid-transfer systems. The allowable pressure depends on material, size, design, temperature, gasket, hose, and complete assembly.

Q: What is the minimum order quantity?

A:MOQ depends on product material, size, type, gasket, marking, packaging, and customization requirements. Standard items generally have more flexible quantities.

Q: What is the production lead time?

A:Lead time depends on product availability, order quantity, material, casting or molding schedule, machining, inspection, and packaging requirements.

Q: Do you support third-party inspection?

A:Yes. Inspection by SGS, BV, TÜV, or another customer-designated agency can be coordinated according to the agreed scope and cost.

Q: Do you support international shipping?

A:Yes. Fuyikang supports international orders for distributors, importers, hose assembly companies, equipment manufacturers, industrial buyers, and OEM customers.

As one of the most professional camlock coupling manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. We warmly welcome you to buy bulk high quality camlock coupling for sale here from our factory.
